ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with 380V Voltage and 17 Dies

ZPW17D Rotary Tablet Press Machine

380V Rotary Tablet Press Machine

17 Dies Tablet Press Machine

문의하기

조회를 요청하다

ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with 380V Voltage and 17 Dies

제품 상세정보

모델 번호.:

zpw17D

전압:

380V

사망 세트:

최대 압력:

60 kn

최대 태블릿 직경:

20 mm

최대 채우기 깊이:

15 mm

최대 태블릿 두께:

6 mm

생산 능력:

40000 PC / Ｈ

포탑 속도:

37r/분

모터 파워:

2.2/960kW

전체 크기:

615 x 890 x 1,415mm

무게:

700kg

컴퓨터 화:

비컴퓨터화됩니다

운송 패키지:

나무 케이스

생산 능력:

10 세트/월

지불과 운송 용어

최소 주문 수량

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

최상의 가격을 얻으세요

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

최상의 가격을 얻으세요

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

최상의 가격을 얻으세요

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

최상의 가격을 얻으세요

문의하기

86-21-57664559

지금 접촉하세요

제품 설명

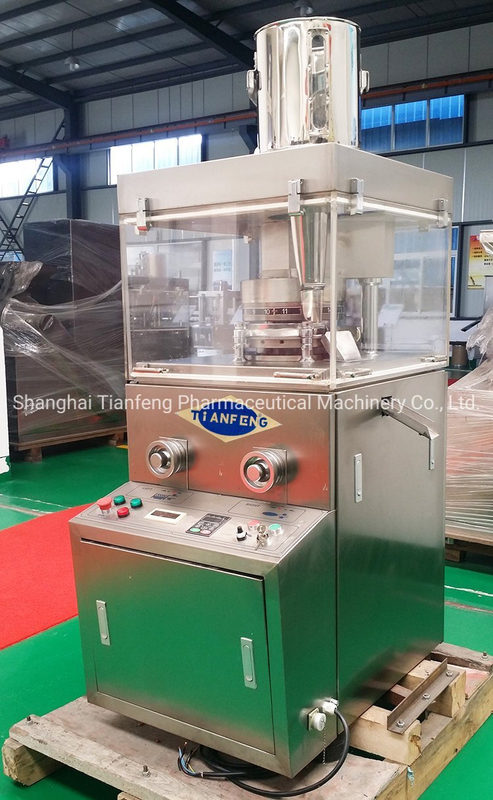

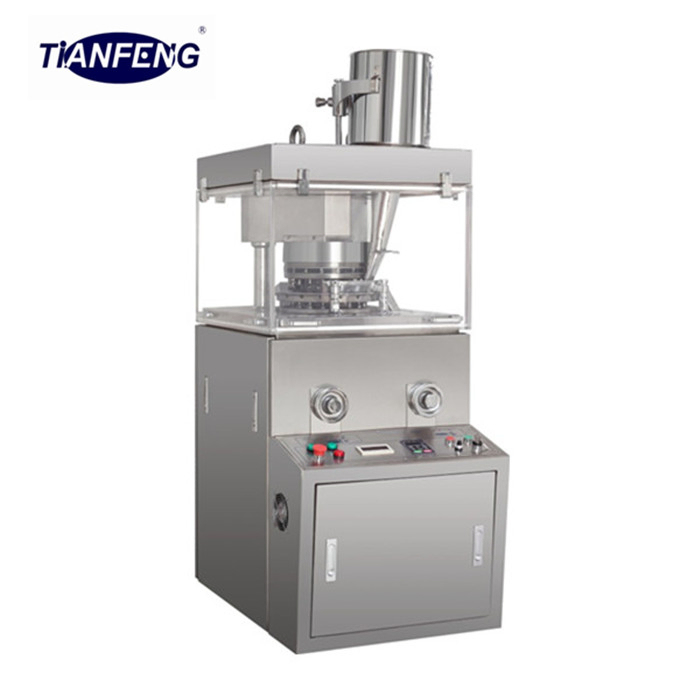

ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with Factory Price CE Certificate

Main Application

This single-press type, continuous automatic tablet press transforms granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning/maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Parameters

Parameter	Value
Dies (sets)	17
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	20
Max. Depth of fill (mm)	15
Max. Thickness of largest table (mm)	6
Production capacity (pcs/h)	40000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall size (mm)	615 x 890 x 1,415
Weight (kg)	700
