Features & Applications

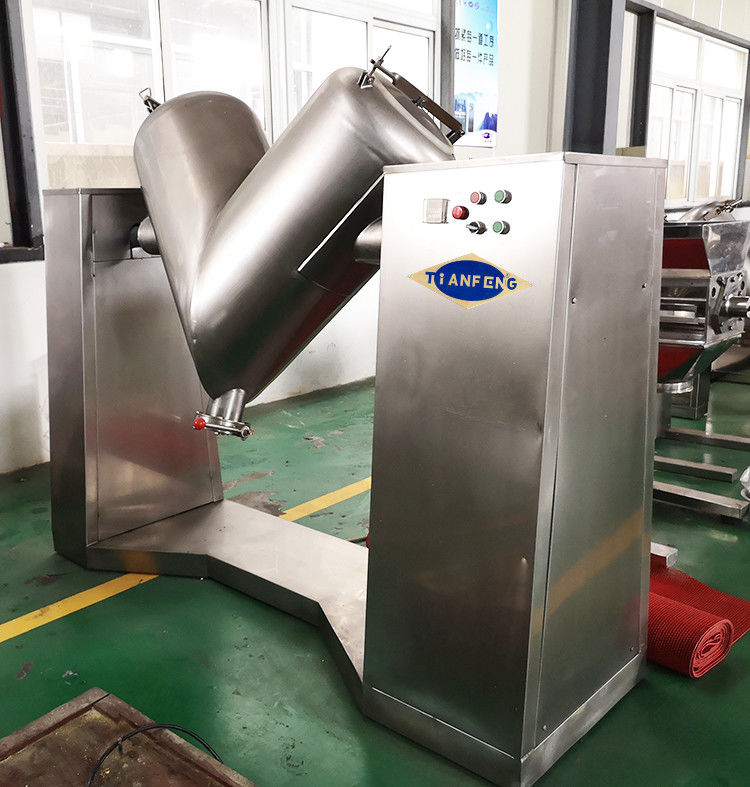

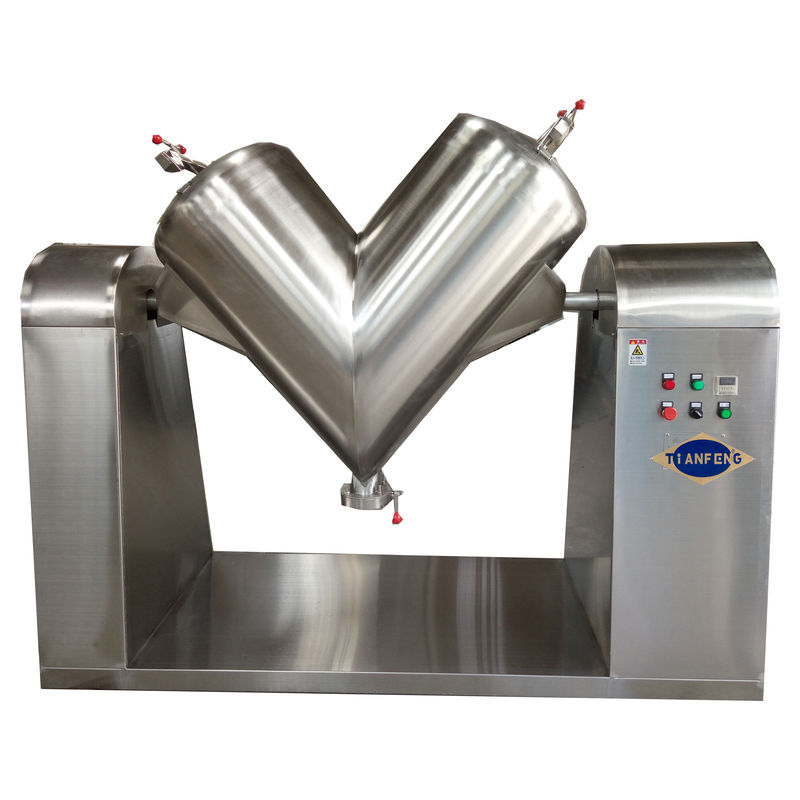

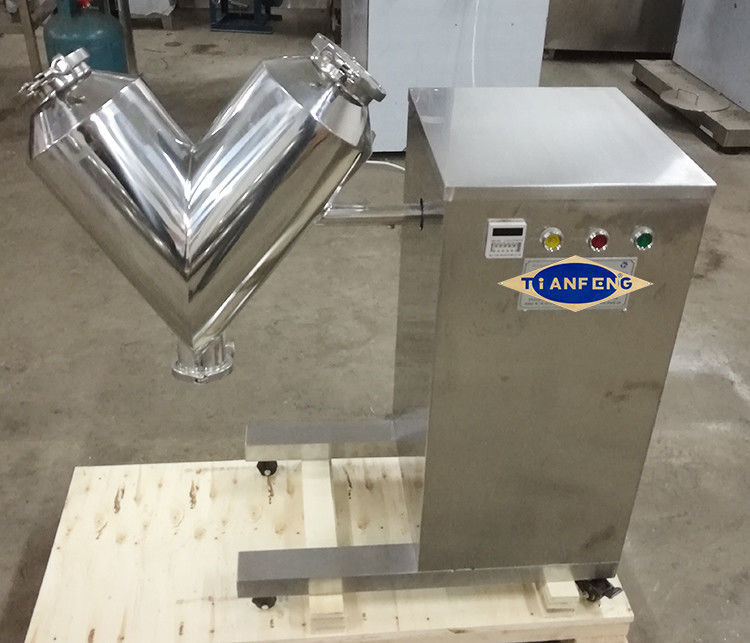

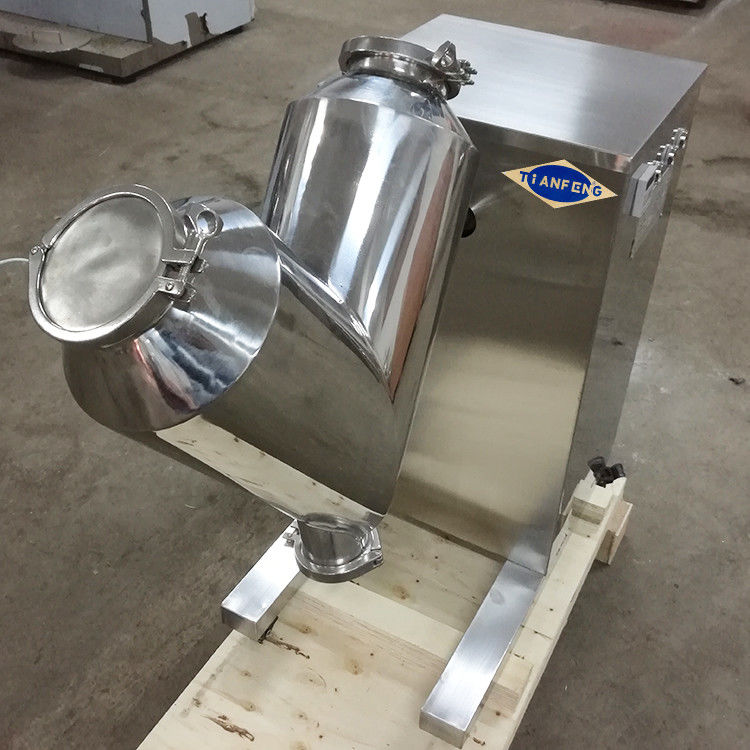

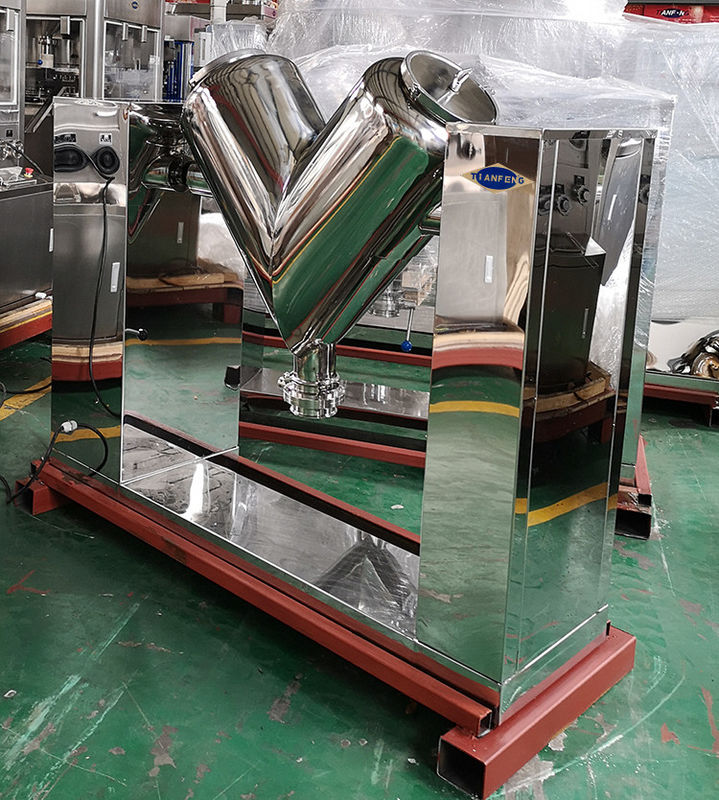

VH Blenders are commonly used in pharmaceutical, nutriceutical, chemical,food and related industries to mix dried powder and granules. Itconsists of two VH of different or same altitudes, and throughmechanical transmission, the materials in these shells are made to moveback and forth, crossed over and rotate 360º to achieving ultimateuniform mixing. VH Blenders are rugged in designed andconstruction, 304 S.S. (optional 316L) mirror polished of inner andouter shell to meet the GMP Standard. We offer the most affordableVH-Blenders in the marketplace from laboratory to large scale productionbatch. We used heavy duty industrial Motors & Drives for all3-Phase VH and intensifier bar. Available OMRON Safety SensorGates for all VH-Blenders. Available Variable Speed Control on VHland I-Bar.
This Mixer has the following distinguishing features: Noblind angle in the VH, no accumulation of materials, high speedI-bar, efficient and short mixing time. The housing are made ofstainless steel. The VH have elegant appearance the charging ofmaterials can be made either by manual operation or through pneumaticvacuum system. For discharging, rotating valves and rapid swivel headsare adopted. Available Single Arm VH Blenders (InterchangeableVH on lab models), customize I-bar and also casters on laboratorymodels. We offer both Cross Flow and Twin-Shell Formats of VH-Blendersfor different applications.
| Model | Barrel capacity (L) | Feed volume (L) | Feed weight (kg) | Agitation speed (r/min) | Mixing time (min) | Motor power (KW) |
| VH8 | 8 | 0.4 | 2.5 | 60 | 6-8 | 0.25 |
| VH14 | 14 | 0.4 | 4 | 46 | 6-8 | 0.37 |
| VH100 | 100 | 0.4 | 28 | 15 | 6-8 | 1.1 |
| VH150 | 150 | 0.4 | 50 | 15 | 6-8 | 1.1 |
| Vh200 | 200 | 0.4 | 55 | 12 | 6-8 | 1.5 |
| VH300 | 300 | 0.4 | 80 | 12 | 6-10 | 1.5 |
| VH500 | 500 | 0.4 | 140 | 12 | 6-10 | 2.2 |
Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually shipped solid preparation auxiliary equipment stainless steel tablet deduster SZS230 by sea with tablet press
One station service to make sure our customer get good products and good service.
(1) Professional advice and rich experience help to choose machine.
(2) Warranty time: All machines are guaranteed for one year.
(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours
except the special reasons once you enquiry us.
(4) Additives: installation book, Manual book, tool box will be sent with machine.
Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.
Technical Service
We can provide design, installation and debugging services or remote maintenance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.
Detail Product Information
Provide picture, video, instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
1. What about your machine quality?
Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.
